RCC & precast products

Cast to specification, delivered ready to set.

Drainage, paving, boundary, chambers, blocks and traffic products, cast from our own aggregate and concrete, cured properly, and delivered to the sequence your programme needs.

Get a quote Browse the catalog

Seven ranges

Drainage, paving, kerbing, covers, boundary, blocks, site works

IS-compliant

Cast to IS 458, IS 15658 and allied codes

Own concrete

Cast from our own aggregate and mix

To drawing

Non-standard sizes made to specification

Product catalog

The whole precast list, from one yard

Standard items are cast to IS dimensions and held in stock through the season. Non-standard sizes and reinforcement are made to drawing.

Drainage & sewage

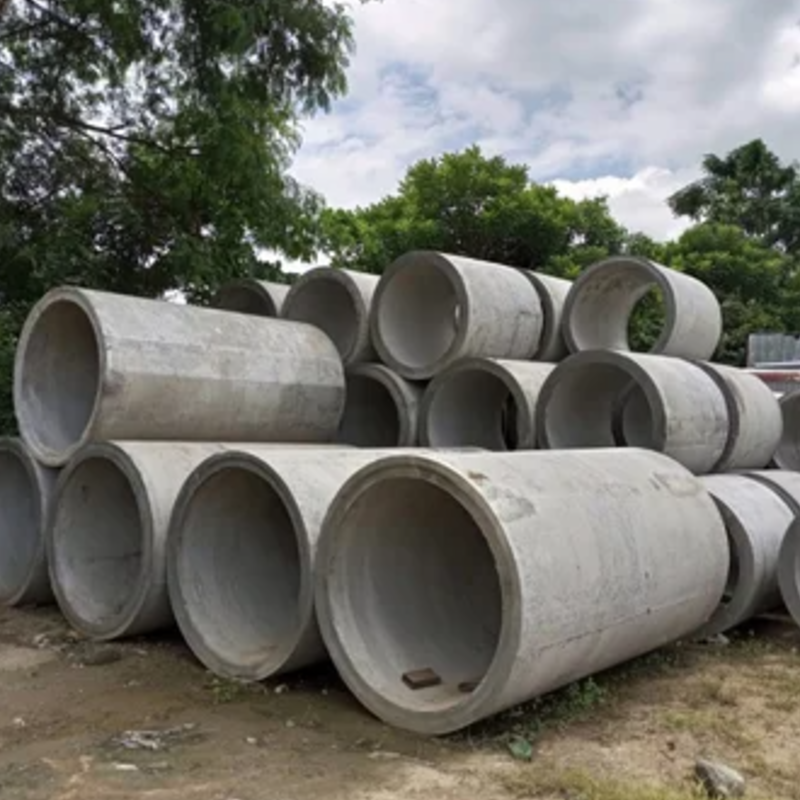

Pipes & drains

Gravity drainage lines, culverts and storm water systems, supplied with collars and jointing rings.

RCC hume pipes Half-round pipes Storm water drains Saucer drains U-trench

Paving

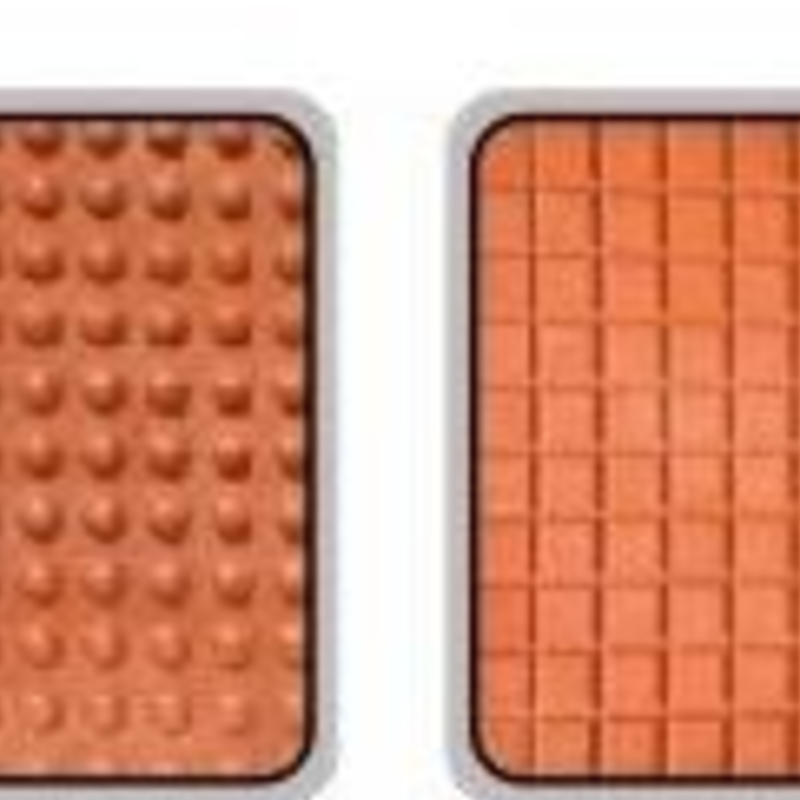

Paver blocks & tiles

Interlocking and plain paving in the thicknesses that suit footpaths, driveways and yard traffic.

RCC paver blocks Cement paving tiles Chakka tiles 60 / 80 / 100 mm

Traffic

Road furniture

Kerbing, bollards and guards that take an impact and stay in place.

RCC bollards Kerb stones Tree guards Channel kerbs

Cables & covers

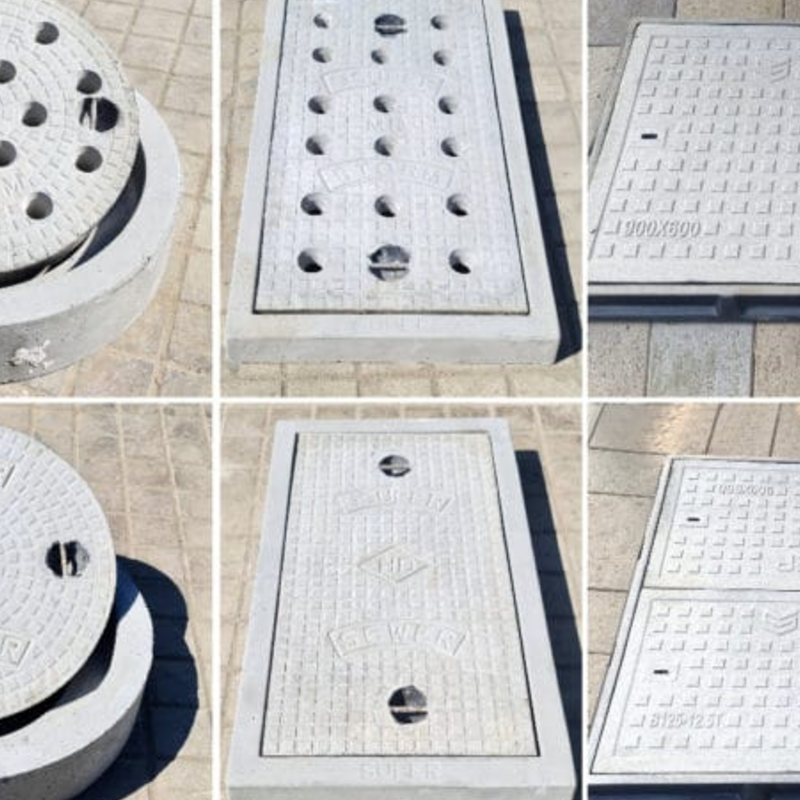

Chambers & covers

Covers, chambers and route protection for utility and power networks.

Chamber covers MSETCL tiles Earth pit chambers Cable trench Route markers

Boundary

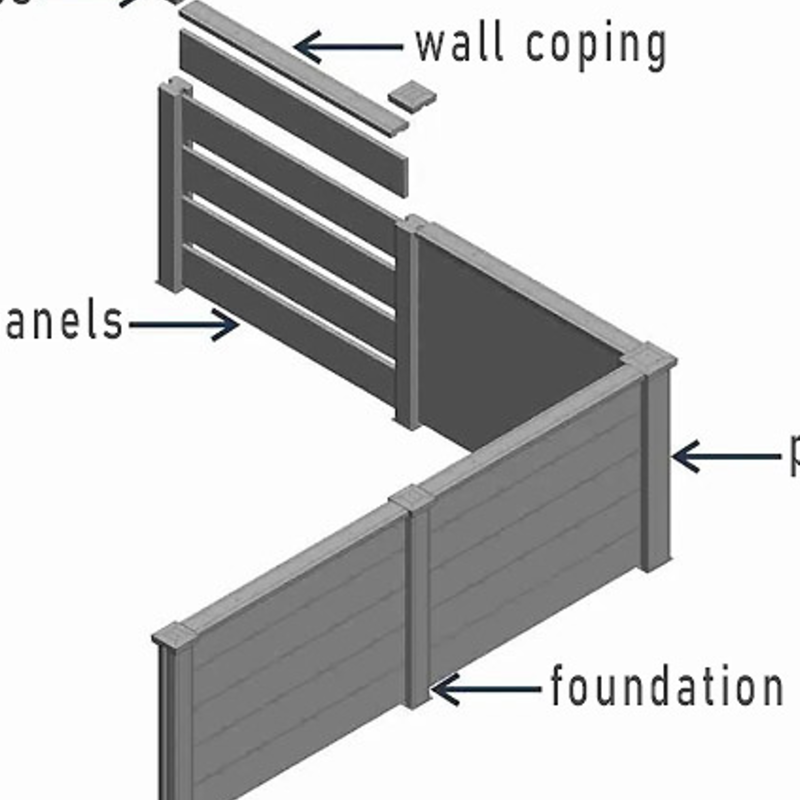

Compound systems

Precast boundary walls and poles that go up in days rather than weeks.

RCC compound poles Precast compound walls Fencing posts

Wall

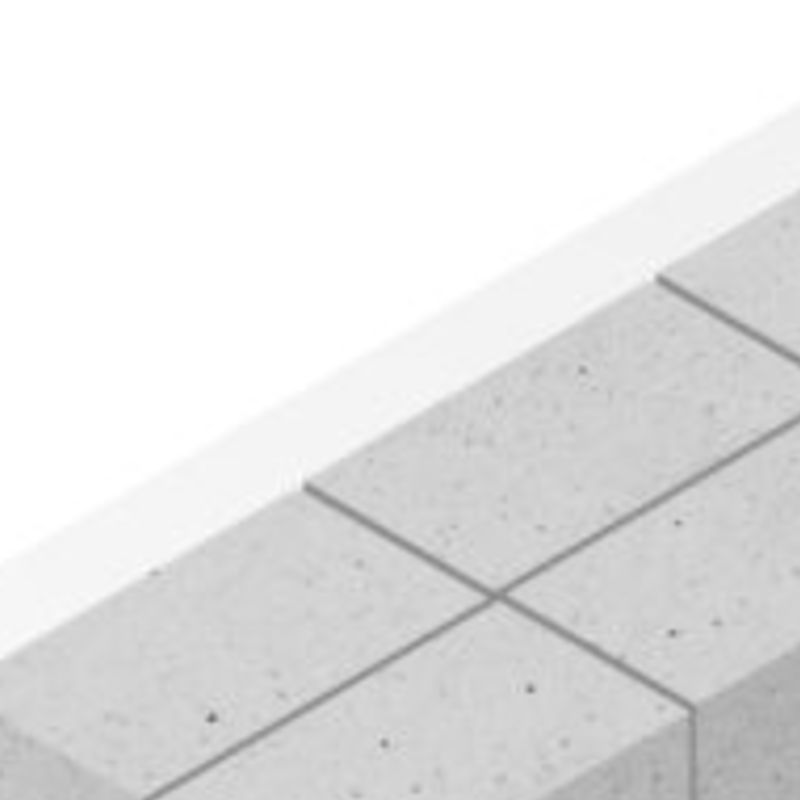

Blocks & bricks

Masonry units for infill and partition walls, with the mortar to lay them.

AAC blocks AAC mortar Solid concrete blocks Hollow blocks Fly ash bricks

Everything else

Site & landscape products

Water storage, sanitation and architectural concrete. Cast to the same specification as the rest of the range, ordered on the same account.

RCC water tanks Chamber rings Manhole rings RCC toilets Septic tanks FRP toilets MS toilets RCC jali RCC benches GFRC elements Planters

Hume pipe classes

Pipes rated for the load above them

RCC pipes to IS 458, supplied with collars and rubber rings. Class is chosen by the depth of cover and the traffic loading over the line . Tell us the trench detail and we will advise.

NP2 150 – 1200 mm Non-pressure lines under light cover, outside carriageways : field drains and yard drainage.

NP3 150 – 1800 mm The standard for road crossings and municipal storm water under normal traffic loading.

NP4 300 – 1800 mm Heavy traffic loading, deep cover and highway culverts where crushing strength matters.

Collars & rings All sizes Matching collars and rubber sealing rings supplied with the line so joints are made properly.

Paver selection

Thickness is chosen by what drives over it

The commonest paving failure on site is an 60mm block laid where a loaded truck turns. Pick by traffic, not by budget, and get the bedding sand and edge restraint right underneath.

Thickness Strength Where it goes

60 mm M30 Footpaths, garden paving and pedestrian plazas with no vehicle access.

80 mm M35 Driveways, car parking bays and light commercial access roads.

100 mm M40 Loaded truck movement, service yards and industrial approach roads.

120 mm M40+ Container yards, weighbridge approaches and heavy plant hardstands.

Also supplied with the pavers

Bedding sand, edge kerbs and joint filling sand, so the laid area performs the way the block is rated.

Masonry blocks

AAC and fly ash, and when each one earns its place

AAC is lighter and insulates better, fly ash is denser and cheaper per unit. On a tall frame the dead load saved by AAC pays for itself in steel and foundation. On a boundary or a service block, fly ash usually wins.

Thin bed mortar goes with AAC

Laying AAC in ordinary sand cement mortar throws away most of its thermal advantage and doubles the joint thickness. We supply the mortar with the blocks.

AAC blocks

Autoclaved aerated concrete

Roughly a third the weight of solid masonry, with far better thermal performance. Cuts dead load on the frame and cooling load on the building.

Fly ash bricks

Class designation to IS 12894

Denser and dimensionally truer than table moulded clay brick, with less mortar wastage and no topsoil consumed in the making.

Solid concrete blocks

Dense aggregate

For load bearing walls, retaining work and anywhere the wall has to carry rather than just divide.

Hollow blocks

Cored, lighter section

Faster to lay and lighter per square metre, with cores that take vertical reinforcement and services.

Size Common use

600 x 200 x 100 AAC partition and infill walls in framed construction.

600 x 200 x 150 AAC external walls where thermal performance matters.

600 x 200 x 200 AAC load bearing and boundary walls.

230 x 110 x 75 Fly ash brick, the standard modular size for general masonry.

400 x 200 x 200 Solid and hollow concrete block for boundary and service structures.

How they're made

Precast is only as good as its curing

Most failures in precast are traceable to under-cured concrete or a reinforcement cage in the wrong place. Both are process problems, so we control the process rather than inspect the outcome.

Cage jigs

Reinforcement cages made on jigs so cover is the same in every unit.

Vibration control

Table and needle vibration timed to consolidate without segregating the mix.

Water curing

Full curing period in the tank or under cover before anything is loaded out.

Mould maintenance

Steel moulds checked and re-trued, because a worn mould shows in every cast.

Batch tracing

Each lot recorded against the concrete batch it was cast from.

Load testing

Three-edge bearing and strength tests to the relevant IS code on sample units.

Beyond supply

We can put it in the ground too

Delivery sequencing

Units delivered in the order they go in, so your site isn't storing what it can't lay yet.

Unloading & handling

Crane and hydra arrangement for heavy pipes, covers and boundary panels.

Installation crews

Laying, jointing and backfill for drainage lines and precast boundary systems.

Made to drawing

Non-standard chambers, covers and panels cast against your structural drawing.

Moulds, cement, aggregate, steel and labour . Every input to these products is sourced and worked in India.

Precast questions

Before you order

Which pipe class do I need?

It depends on the depth of cover and the traffic over the line. NP2 for light duty away from roads, NP3 for most municipal and road-crossing work, NP4 for heavy loading and deep cover. Send the trench section and we'll confirm.

What paver thickness should I order?

60mm for footpaths and light pedestrian areas, 80mm for driveways and car parking, 100mm and above for yards taking loaded trucks. Bedding sand and edge restraint matter as much as thickness.

Do you make items to drawing?

Yes. Chambers, covers, boundary panels and special sections are cast against your drawing, with the reinforcement detail you specify. Mould cost and lead time depend on the quantity.

How long is the lead time?

Standard items in stock go out within a day or two. Made-to-order items depend on mould availability and curing . Typically two to three weeks, and we'll tell you before you commit.

Can you install as well as supply?

For drainage lines and precast boundary systems, yes. We can quote supply-only or supply-and-lay, and we'll price the unloading arrangement either way.

Do you supply AAC block mortar too?

Yes, thin-bed mortar is supplied along with the blocks. Using ordinary sand-cement mortar on AAC wastes the block's advantages, so they go together.

Send the item, the size and the quantity.

Drawings are welcome for non-standard items. We quote ex-works and delivered, and we'll tell you the lead time honestly.
